Company Description
Qingdao KXD Steel Structure Co., Ltd. - Global provider of steel structure building solutions
As a subsidiary directly under the New Guangzheng Group, Qingdao KXD Steel Structure takes "high cost-effectiveness+excellent quality" as its core competitiveness, deeply cultivates the field of steel structure construction, and provides one-stop services from design to implementation for global customers. The company holds a first-class qualification for steel structure engineering contracting and ISO9001:2000 quality certification. Its business covers various scenarios such as large warehouses, industrial centers, aircraft hangars, sports venues, churches, etc. It is particularly skilled in flexible net span engineering design to meet the functional needs of different spaces.
Product Description

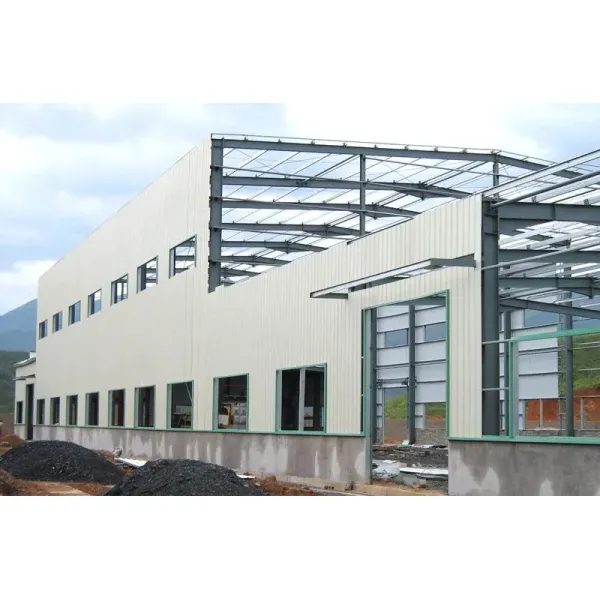

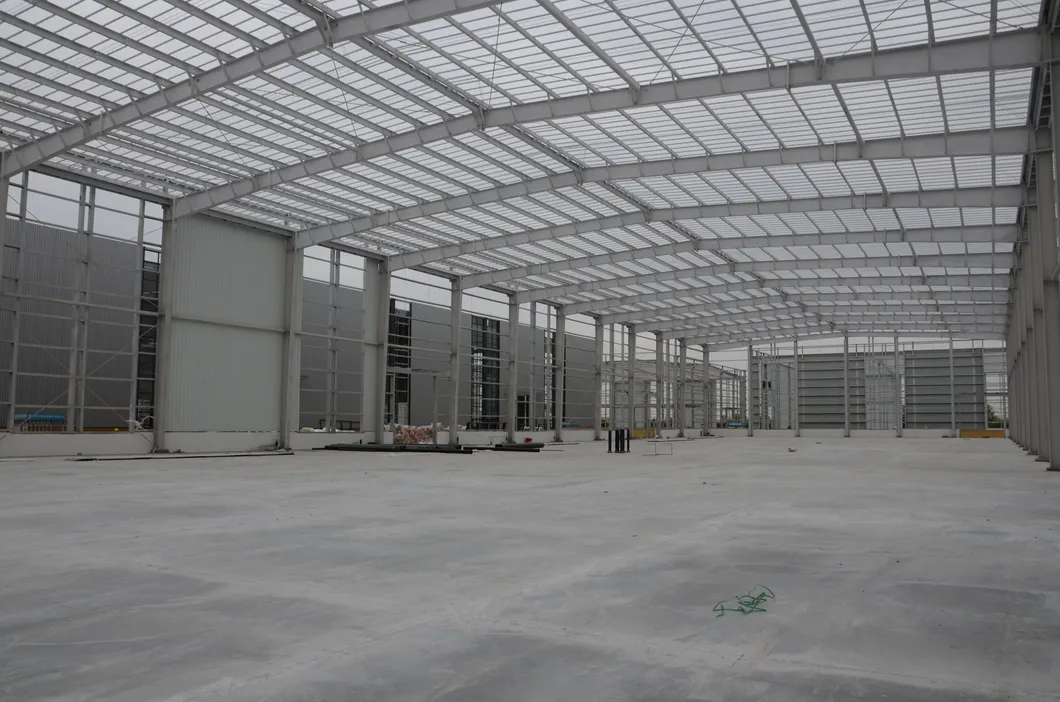

Ⅰ. Core product: Steel structure warehouse solution
Suitable for industrial plants, logistics distribution centers, supermarket warehouses, food cold chain and other scenarios, it can be customized according to regional climate and usage needs, combining practicality and aesthetics
Ⅱ. Technical Details
Material system:
Steel: Q235 (purlins, supports) combined with Q345 (main frame) to meet different load requirements;
Enclosure system: Optional monochrome corrugated steel plate (aluminum zinc plate, thickness 0.3-0.7mm) or sandwich panel (EPS/rock wool/PU, thickness 50-150mm), balancing waterproofing and insulation;
Anti corrosion treatment: hot-dip galvanizing or painting process to enhance structural durability.
Function configuration:
Doors and windows: made of aluminum alloy/PVC material, customizable in size and opening method (swing doors, rolling shutter doors, etc.);
Accessories: downspouts, drainage ditches, ventilation fans, skylights, etc., to enhance the building's user experience;
Special scenario: Cold chain warehousing can upgrade the insulation layer thickness, and logistics centers can be equipped with loading and unloading platforms.
Ⅲ. Performance advantages
Reliable structure: Made of Q235/Q345 steel, with superior wind resistance, earthquake resistance, and fire resistance, suitable for different climatic conditions;
Efficient construction: Prefabricated production+on-site assembly mode, significantly shortening the construction period and reducing labor costs;
Flexible and durable: The bolt/welding connection design supports later expansion and renovation, with a service life of 25-50 years;
Environmental protection and energy conservation: Recyclable steel combined with insulation materials such as EPS/rock wool/glass wool can reduce energy consumption and pollution;
Space optimization: The large-span column free design improves utilization and adapts to the layout of equipment such as shelves and cranes.
Ⅳ. Customized service process
1.Requirement communication: Confirm core parameters such as project size, country, design load (wind speed, snow load, earthquake parameters), etc;
2.Scheme design: Provide structural drawings and material schemes based on space usage (such as clothing warehouse, agricultural product cold chain) and functional requirements;
3.Production and installation: Factory prefabricated components, rapid on-site assembly, and synchronized completion of mechanical and electrical accessory installation;
4.After sales support: Provide usage training and regular maintenance to ensure the long-term stable operation of the building.
Whether you need an EPS sandwich panel warehouse, greenhouse, or professional logistics storage, Qingdao KXD Steel Structure can provide customized solutions based on your specific requirements, such as ridge height, roof slope, and insulation material type. Welcome to visit the factory for inspection, or provide project parameters (size, load, material preferences, etc.). We will provide you with professional quotations and design solutions to help the project land efficiently.
